Mass Production Empowerment: Professional Selection Guide for SMB and MMCX RF Connectors in IoT Devices
As the IoT industry shifts from prototype verification to large-scale mass production, standardized and reliable RF connection solutions have become a core factor affecting product stability, production yield and life-cycle operation and maintenance. As two mainstream miniature snap-on RF connectors widely used in wireless devices, SMB and MMCX cover most industrial and consumer IoT application scenarios. Reasonable selection based on structural characteristics, working conditions and mass production requirements can effectively reduce failure rates, optimize assembly efficiency and cut after-sales maintenance costs.
In actual engineering applications, connector selection is no longer a simple size matching work. It involves PCB layout design, cable routing, impedance matching, mechanical durability and environmental adaptability, running through the whole process of product development, mass manufacturing and field operation. Enterprises need to adopt a systematic selection strategy to meet the dual requirements of product miniaturization and long-term operational reliability.
Clear Application Positioning: Core Selection Principles for SMB & MMCX
Based on massive mass production verification and field application experience, the industry has formed mature and reliable selection criteria for SMB and MMCX connectors:
SMB connectors are the preferred solution for industrial and maintainable scenarios. They are suitable for IoT equipment requiring frequent on-site debugging, repeated plugging and unplugging, outdoor deployment and replaceable antennas. With excellent mechanical tolerance and stable performance, SMB can effectively reduce port damage risks and lower field maintenance costs.
MMCX connectors are the optimal choice for compact miniaturized terminals. Designed for space-constrained equipment, they are widely used in embedded IoT products with highly integrated PCBs. Featuring ultra-small footprint and flexible routing, MMCX helps enterprises realize lightweight and miniaturized product design, adapting to the compact development trend of smart sensors, smart meters and wearable devices.
Industry engineers recommend arranging dual test points of SMB and MMCX in the prototype stage. By verifying VSWR performance, plugging stability and cable routing interference in advance, enterprises can avoid structural revision and performance risks after mass production.
Product Advantage Analysis: Scenario-Based Value of Two Core Connectors

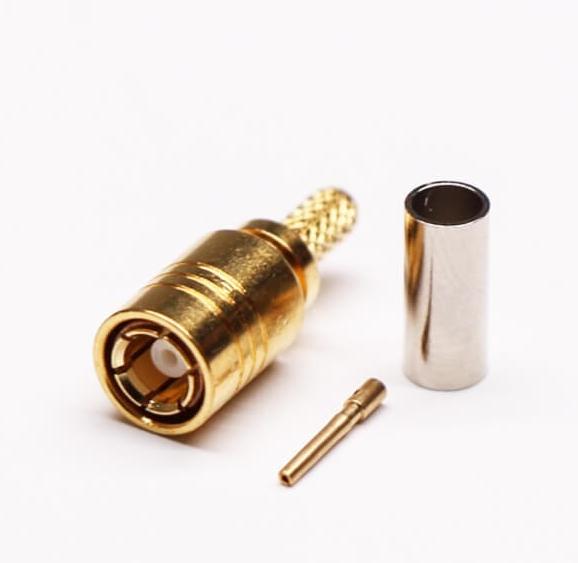

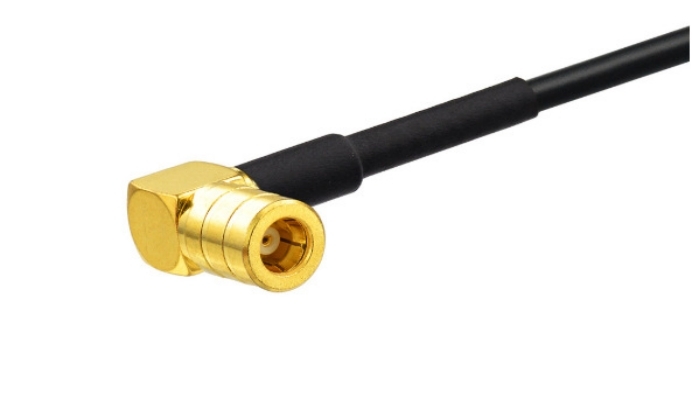

SMB Connector: Reliable Industrial-Grade Connection Solution
SMB connectors support dual impedance specifications of 50Ω and 75Ω, covering wireless communication and video transmission scenarios. Compatible with mature standard coaxial cables such as RG174 and RG316, they feature high mechanical strength and strong environmental adaptability. The oversized structural design enables convenient manual operation, realizing stable plugging and unplugging even in complex outdoor environments such as low temperature and high humidity, and is friendly to gloved field maintenance.
With a service life of more than 1,000 mating cycles, SMB connectors have outstanding wear resistance and structural stability. The product series is complete with diversified installation methods such as surface mounting and panel mounting, supporting stable large-scale mass production and long-term supply. It is widely applied in industrial IoT gateways, outdoor GPS survey equipment, RF test instruments and vehicle positioning terminals.
In actual design, engineers need to follow the core specification principle ofstrict impedance matching to avoid signal reflection and attenuation caused by mixed use of 50Ω and 75Ω specifications, so as to ensure stable RF transmission performance of the whole machine.

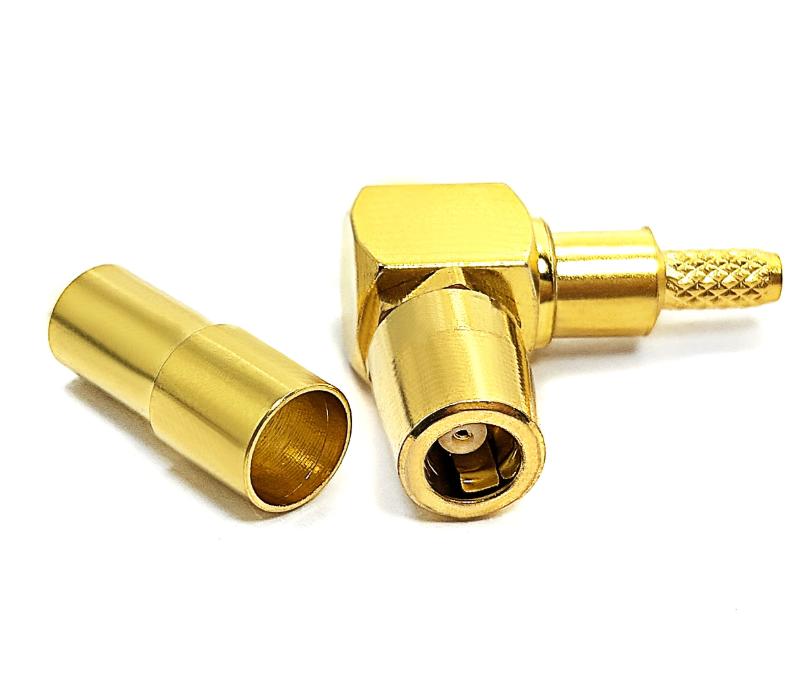

MMCX Connector: Miniaturized Enabler for Compact IoT Terminals
Against the background of increasingly compact IoT hardware structure, MMCX connectors solve the layout pain point of high-density PCB components. Adopting a 360° free rotation snap-on structure, MMCX can release cable torsional stress, greatly optimize the internal wiring of narrow equipment, and effectively reduce the risk of cable fatigue damage.
Matching with ultra-fine micro-coaxial cables of 1.13mm and 1.37mm, MMCX is suitable for short-distance internal RF jumper connection of equipment, with a mainstream 50Ω impedance specification, perfectly adapting to Wi-Fi, GPS, 4G/5G, NB-IoT and other wireless communication systems. Its ultra-low-profile design greatly saves PCB board space, helping enterprises realize product thinning and miniaturization iteration.
It is worth noting that MMCX has delicate contact structure and a standard service life of 500 mating cycles. It is suitable for fixed internal interconnection scenarios with no frequent disassembly after assembly. For vehicle-mounted and high-vibration equipment, auxiliary fixing and strain relief structures need to be matched to ensure long-term connection stability. It is widely used in smart meters, miniature asset trackers, wireless sensors and embedded wireless modules.
Five-Dimensional Mass Production Selection Standard to Help Enterprises Avoid Engineering Risks
To meet the stringent requirements of large-scale production and long-term field operation, enterprises need to comprehensively evaluate from five core dimensions: mechanical structure, RF performance, cable matching, environmental reliability and supply chain production:
1. Structural layout: MMCX is preferred for products with strict size limits and high component integration; SMB is selected for equipment with external antennas and frequent on-site debugging and maintenance requirements.
2. RF performance: Strictly match the system impedance specification. Most IoT wireless systems adopt 50Ω design, while 75Ω scenarios exclusively rely on SMB solutions. Full-band VSWR and insertion loss tests are required before mass production to eliminate high-frequency signal attenuation and reflection risks.
3. Cable adaptation: SMB is matched with standard thick coaxial cables, suitable for long-distance external antenna wiring; MMCX ultra-fine cables are limited to short-distance internal jumpers to avoid excessive high-frequency loss caused by long-distance wiring.
4. Environmental reliability: SMB with high mechanical durability is suitable for outdoor and high-frequency operation scenarios; when MMCX is used in high-vibration scenarios, mechanical reinforcement and cable fixing designs must be added.
5. Mass production and after-sales cost: SMB has mature technology, high assembly yield and low after-sales failure rate, suitable for large-scale industrial equipment; MMCX miniaturized design optimizes product structure, but requires strict screening of cable suppliers to control processing quality.
Typical Application Cases & Industry Common Problems Resolution
In industrial field verification, outdoor GPS survey terminals that require long-term outdoor operation and frequent antenna replacement fully apply SMB connectors, relying on their high durability and convenient maintenance to reduce field operation costs. Compact municipal 4G smart meters adopt MMCX solutions, making full use of miniaturization advantages to adapt to narrow internal space and realize maintenance-free long-term operation after factory assembly.
Aiming at common engineering problems in the industry, the technical team sorted out standardized solutions: SMB and MMCX are physically and electrically incompatible, and adapter conversion is prohibited in mass-produced products to avoid performance degradation; 50Ω and 75Ω specifications cannot be mixed in any scenario; frequent plugging of MMCX external interfaces is prohibited to prevent spring fatigue and signal instability.
Professional RF Connection Solutions Empower IoT Mass Production Upgrade
Relying on rich experience in IoT wireless hardware development and mass production service, our team provides one-stop customized solutions covering SMB/MMCX RF connectors, coaxial cable assembly, PCB layout guidance, prototype testing and mass production docking. We effectively help enterprises avoid common risks such as impedance mismatch, vibration failure and low assembly yield in the R&D and production process, and provide stable and standardized RF connection support for global IoT and industrial wireless equipment.
Industry FAQ: Standardized Resolution of Common Mass Production Issues
To help enterprises eliminate technical misunderstandings in product design and mass production, our professional technical team summarizes and answers frequent engineering questions in IoT RF connector application:
Q1: Are SMB and MMCX connectors interchangeable with adapters?
A: Completely incompatible in both physical structure and electrical performance. Even temporary transition via adapters will cause impedance discontinuity, deteriorate VSWR and signal transmission efficiency. The use of conversion adapters is strictly forbidden in mass-produced products, and a single connector specification shall be confirmed at the design stage.
Q2: Why do MMCX connectors suffer unstable signal performance after repeated plugging?
A: MMCX adopts miniature precision contact structures with thin elastic springs. Frequent mating and disassembly will cause plating wear and permanent spring fatigue, resulting in fluctuating contact resistance and degraded RF performance. Therefore, MMCX is only applicable to fixed internal interconnections, not exposed external antenna interfaces.
Q3: Can 50Ω SMB connectors be used in 75Ω RF systems?
A: Electrically unfeasible. Although physical insertion is achievable, mismatched impedance will trigger severe signal reflection, transmission attenuation and signal distortion. 50Ω and 75Ω connector and cable specifications must be strictly separated with no cross usage.
Q4: How to select connectors for high-vibration IoT equipment?
A: For exposed external interfaces requiring manual operation and maintenance, SMB with high mechanical durability is preferred. For sealed devices with no post-assembly disassembly (internal jumper scenarios), MMCX is available with supporting measures including cable fixing clamps and strain relief structures to enhance operational stability.
Q5: Are customized RF cable assembly solutions supported?
A: Full OEM customization is available. We support personalized customization of straight/right-angle connectors, cable materials, lengths, outer sheaths and combined connector configurations at both ends. Unified crimping processes and standardized testing are adopted in prototype and mass production stages to ensure consistent RF performance of batches of products.
